LOUIS MOINET TEMPOGRAPH

LOUIS MOINET TEMPOGRAPH

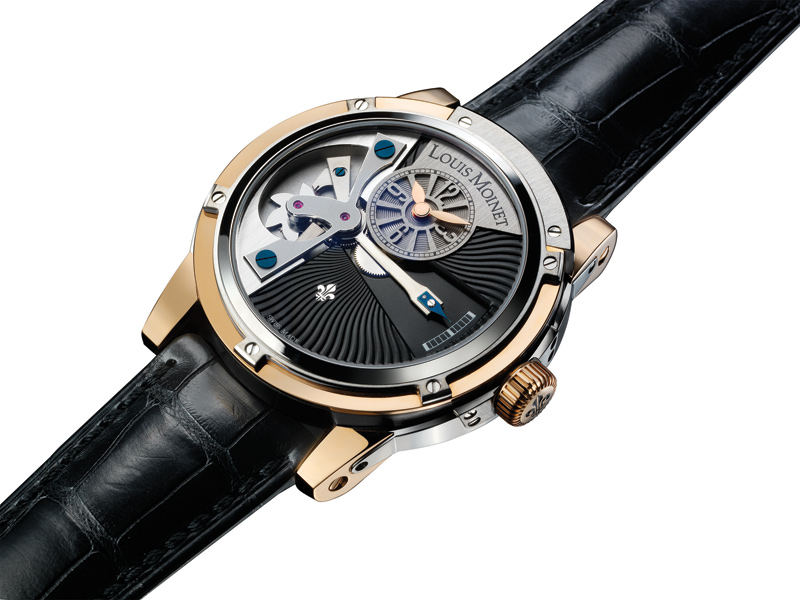

TEMPOGRAPH original technology is absolutely unique in its kind. It consists in the first and only 10-second retrograde complication activated by a visible cam mechanism. This invention has been patented (patent pending), since TEMPOGRAPH can be considered as one of the most creative watches on today’s market.

The distinctive feature of TEMPOGRAPH is its retrograde seconds mechanism, which is constantly on the move. The watch is a non-stop visual delight, enlivened by the regular ballet of a hand that marks off the time in ten-second segments alternating with an instant retrograding motion.

At 9 o’clock, the cam mechanism is truly spectacular and has been left visible so as to enable the wearer to admire it in action. The cam is composed of six teeth and performs one rotation per minute. It releases a titanium lever adjusted to the 100th

Jean-Claude Sozzani, watchmaker and head of the technical department

Jean-Claude Sozzani, watchmaker and head of the technical department

Technical Specifications

Movement
Exclusive self-winding mechanical, made up of 125 parts

Technology
Patent pending

Decoration
Blued steel screws, oscillating weight decorated with “Côtes du Jura” ® motif

Functions
Hour & Minute
10 seconds retrograde mechanism

Jewels
27

Winding
Automatic winding in either direction

Oscillations
28,800 vph

Frequency
4 Hz

Balance-spring
Flat

Balance
Four arm Glucydur type

Escapement
Lever

Power reserve
42 hours

Hand-burnishing

Hand-burnishing Hand-burnishing the pivots is an extremely delicate operation carried out using a burnisher and designed to ensure a perfect surface finish and appropriate tolerance of the part being crafted.

Case
Original design by Louis Moinet®, composed of 48 different elements

Case diameter
47 mm

Water-resistance
30 metres

Caseback
Secured with 6 screws, engraved with individual number and Louis Moinet markings

Crystals
Two anti-glare sapphire crystals

Crown guard
Patent pending

Dial
Decorated with “Côtes du Jura” ®

Hands
Galvanic blue or rose gold-plated, fitted with a cap (exclusive Louis Moinet feature)

Bracelet
Hand-sewn Louisiana alligator leather

Width between lugs
24 mm

Buckle
Original design by Louis Moinet®, in steel 316L or 18K rose gold and black titanium
folding clasp

Watch box
Louis Moinet Book in leather

Jean-Marie Schaller: Louis Moinet CEO et Micaela Bartolucci

Jean-Marie Schaller: Louis Moinet CEO et Micaela Bartolucci

Limited Edition 5 Limited Editions of 60 watches each :
• LM-13.65.50/50
18K Rose Gold & Yellow Gold
Black dial

• LM-13.40.50/50
18K Rose Gold & Titanium Grade 5 & Steel
Black dial

• LM-13.40.60/50
18K Rose Gold & Titanium Grade 5 & Steel
Silver dial

• LM-13.20.50/50
Titanium Grade 5 & Steel
Black dial

• LM-13.20.60/50
Titanium Grade 5 & Steel
Silver dial

Source : www.swisstime.ch
